Swienty

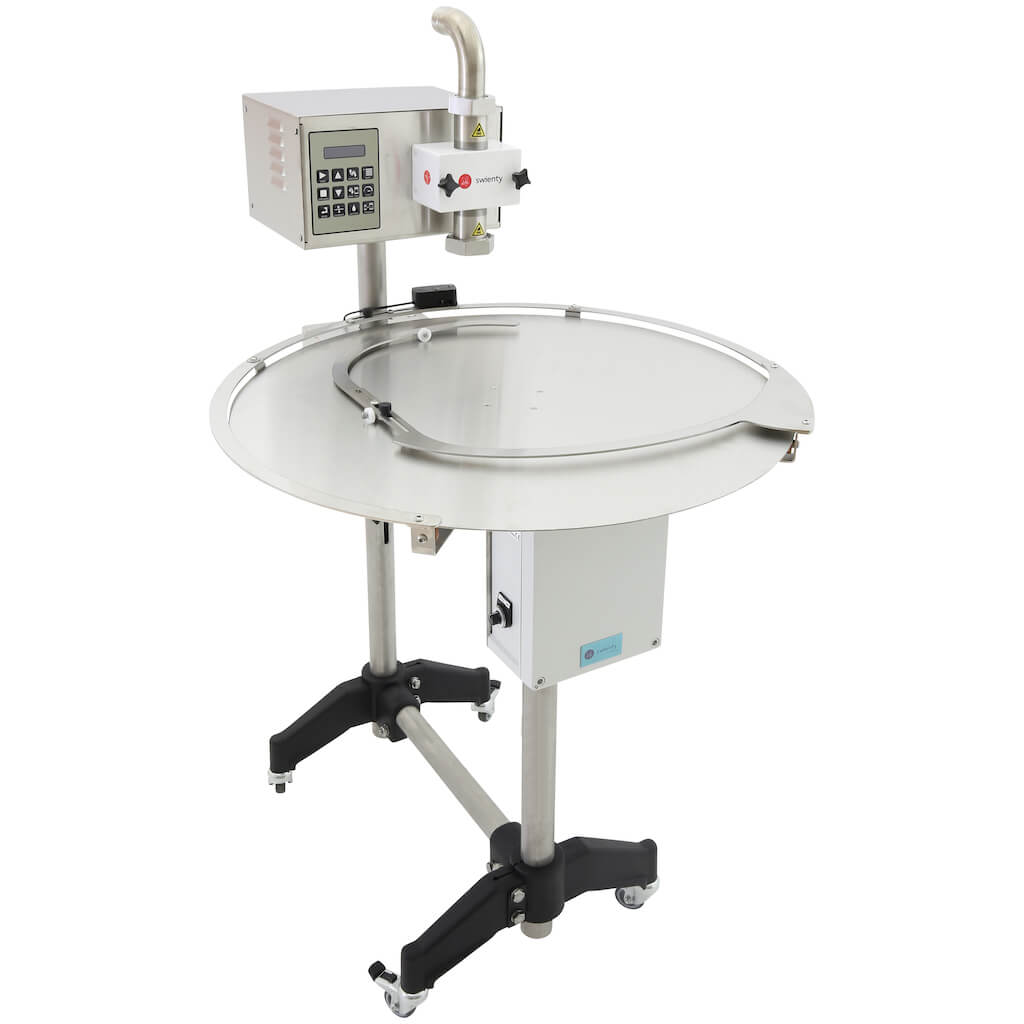

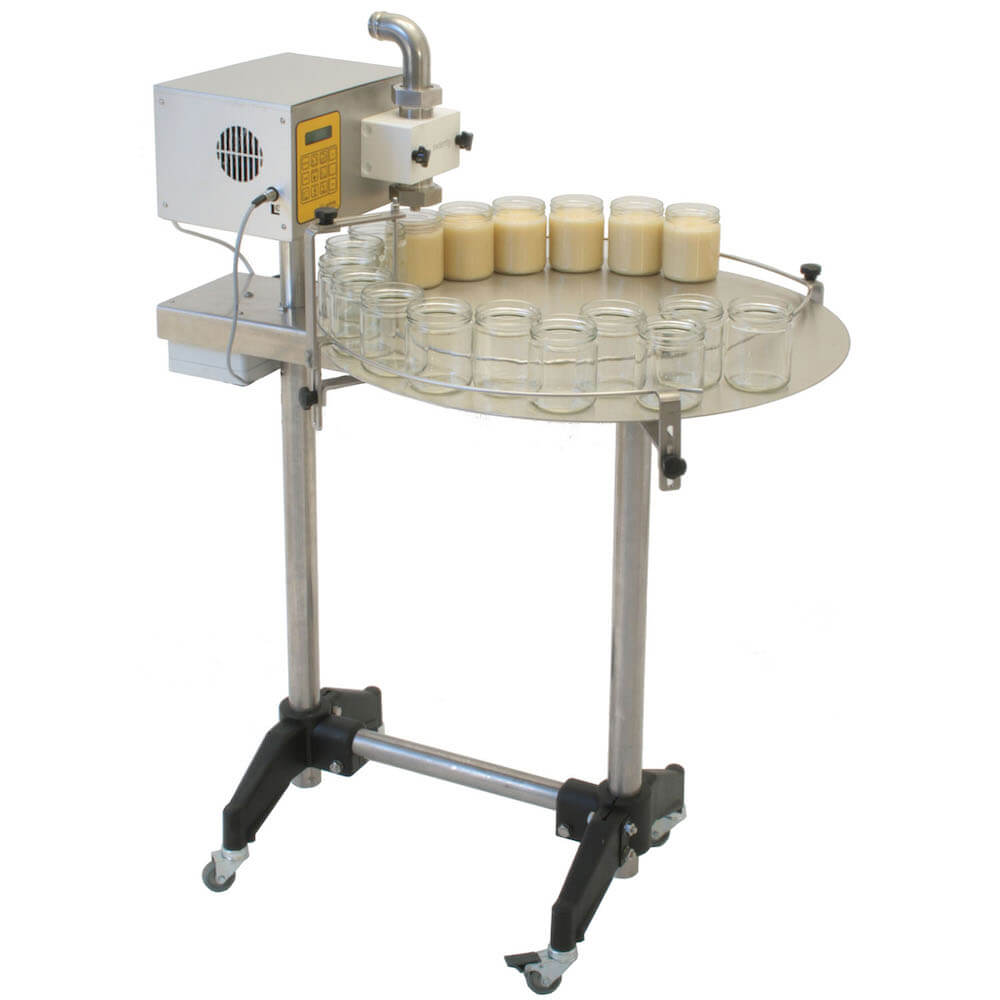

Filling Station/Turn Table ø 70cm - DaM 1000
In Stock
- Gear pump and low voltage DC motor with helical gearbox.
- Computer-controlled precision motor ensuring impeccable anti-drip function.
- 20 customizable filling programs for weight, calibration and other parameters.
- Bidirectional pump operation at variable speeds with food-grade components.
- Automatic transport of the pot via a rail with a wired switch to initiate filling.
- Adjustable rail to accommodate different pot sizes.
- The unit allows for horizontal and vertical adjustments for different pot sizes.
- Assembly can usually be completed in about 30 minutes.
Download the information sheet (English only)
*Shipping on a pallet
SKU: SW-1000
Description
Included items:
- 110075 Pedal
- 110059 Counterflow Valve
- 115815 Dosing syringe 0-60 ml
- 500110F Nut for BS 1½" fitting»
- 110065C Complete cross cut ø20
- 110046 Feet
- 110165 Hose 1½" / 38mm
- 110110A Elbow fitting 1½" BS
- 110175 Hose clamp for 1 1/2"»
Set of spare parts included:
- 2 x 110065D Cross cut Ø20
- 2 x 110072 Black rubber membrane
- 2 x 500212 BS 1½ Joint
- 2 x 502740 Manually mounted nuts for the pump head
- 2 x 508037 O-ring 37×2 NBR 70
- 1 x 508082 O-ring 82×2 NBR 70
Technical Specifications:
- Power: 230W
- Voltage: 90-264VAC 50/60Hz
- Machine type: Computer-controlled gear pump
- Accuracy: +/- 2g
- Pump output (kg of honey/h): ~270 kg/h
- Filling range: 10g – 999.999g
- Fittings: BS 1½" hose connection on both sides of the pump
- Noise level: <70 dB(A)
- Media temperature range (°C): Max 60°C
- Programs: 20+
- Pot diameter: 30–120 mm
- Pot height: 30 – 290 mm
- Length: 90 cm
- Width: 74.5 cm
- Units: ml / g / oz
- Packing volume: 60 x 42 x 37 cm + 73 x 73 x 17 cm + 80 x 40 x 50 cm
- Table capacity: 22 glasses (450g)
- Pump flow rate (L/h): 200 L/h
Specifications
| Dimensions (L × W × H) | 999 × 999 × 999 cm |
| Weight | 999 kg |
